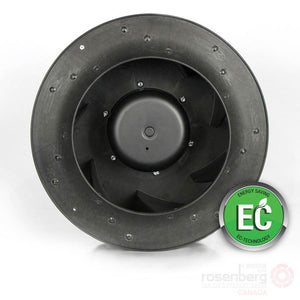

Rosenberg Plug EC / ECM fan with backward-curved impeller. GKHR 315-CIE.088.4EA IE (Model N42-31503)

EC-Plug Fan with backward-curved impeller

Note: NOT AVAILABLE FOR SHIPPING TO USA

Type: GKHR 315-CIE.088.4EA IE
Article-No.: N42-31503

Nominal Data:

Voltage [U] 1~200-277 V
Frequency [f] 50/60 Hz
Input power [P] 0.51 kW
Current [I] 2.25 A
Speed [n] 2265 r/min
Medium temperature [tR] 40 °C
Protection Mode IP 54
Efficiency Class IE4
K-Factor 85
Weight [m] 5.2 kg
Dimensions [L / W / H] 337 mm / 337 mm / 270 mm

Energy-saving EC -Motor (ECM) Technology. The impeller of the E-series (Revolution) made of black, UV-stabilized, and long glass fiber reinforced polypropylene (PP) with 7 backward-curved, profiled blades and narrow efficiency optimized circumferential diffusor.

Sound and weight-optimized. Corrosion-resistant and compact design. Air Flow orientated behavior. Fluidic optimized inlet cone made of galvanized sheet metal. Available with or without Air Flow measuring equipment. Air Flow measuring equipment by circular pressure connections.

Motorized Impeller, includes motor and impeller. Fitting fluidic optimized cone available.

Mounting either with horizontal or vertical motor shaft.

Motorized Impeller statically and dynamically balanced according to DIN ISO 21940-11 at least with quality level G6.3.

Energy-saving EC external-rotor motor exceeds IE4 / Super Premium Efficiency.

Maintenance-free ball bearings closed on both sides with long-term lubrication.

Motor coated black and/or die-casted aluminum.

Protection Class IP54.

1-phase types have cable for supply and control.

Integrated active PFC (Power Factor Correction).

3-phase types with integrated terminal box and environmental resistant cable glands (3x M20x1,5).

100% speed-controllable with integrated Motor Protection.

Modbus RTU Interface integrated.

Soft Start. Potential-free Alarm Contact and integrated 24V Supply for Accessories.

Applicable in all common energy grids.

Low noise commutation.

 Fan complies with the guidelines required (Machinery-, EMC- and Low Voltage Directive) to comply with installation and conformity declaration and CE marking. Standard version with UL approval.
